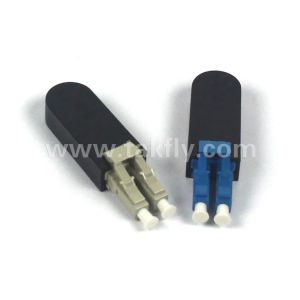

FTTH Single Mode Multimode Loopback Fiber Optic Patchcord
FTTH Single Mode Multimode Loopback Fiber Optic Patchcord assemblies provide you with a looped signal from the source device to hardware for testing purposes. This allows for a signal check for both the transmit and receive functions.
Features Used in testing applications
100% functionally tested
Available in various connector types
SC/LC duplex clip is available for insertion accuracy
8 inches standard length
Custom length also available upon request
Applications Equipment Interconnection
Device Pig-tailing
Premise Networks
Patch Panel Applications
Communications Connections
Specifications Connector Types: SC, LC, MU, MTRJ
Polish Types: PC, UPC, APC
Insertion Loss (Typical): 0.15 dB MTRJ: 0.30 dB
Insertion Loss (Maximum): 0.30 dB MTRJ: 0.50 dB
Durability: < 0.2dB (500 cycles)
Operational Temperature: -20C to +70C
Specification: | Item | Unit | Parameter |
| Operating Wavelength | Nm | 1310/1550 |
| Attenuation Range | dB | 1-10dB(1dB step), 15, 20, 25, 30dB |
| Return Loss | dB | PC:≥50 UPC: ≥55 APC: ≥60 |
| Attenuation Tolerance | dB | ≤1.0 (11-30dB) |
| Working Temperature | degC | -25C~+75C |
| Storage Temperature | degC | -40C~+ 85C |
